Vanilla PowerShell Reverse Shell Using ICMP

After recently creating a PowerShell reverse shell using WebSockets, I figured I could push this subject a bit further. Messing around with packets, hiding data and firing up WireShark, it has been a while!

In this article I want to walk you through how I created a reverse shell in vanilla PowerShell which communicates using ICMP Echo Request messages (Internet Control Message Protocol, a.k.a. ping) over IPv4. It communicates directly between devices at the network layer, utilizing IP for transmission. I’m still working on setting up a decent repository, but wanted to give a sneak preview at how data can be embedded in ICMP traffic. My goal? Creating a tool which can test the detection and response of defensive measures like NDR and XDR solutions!

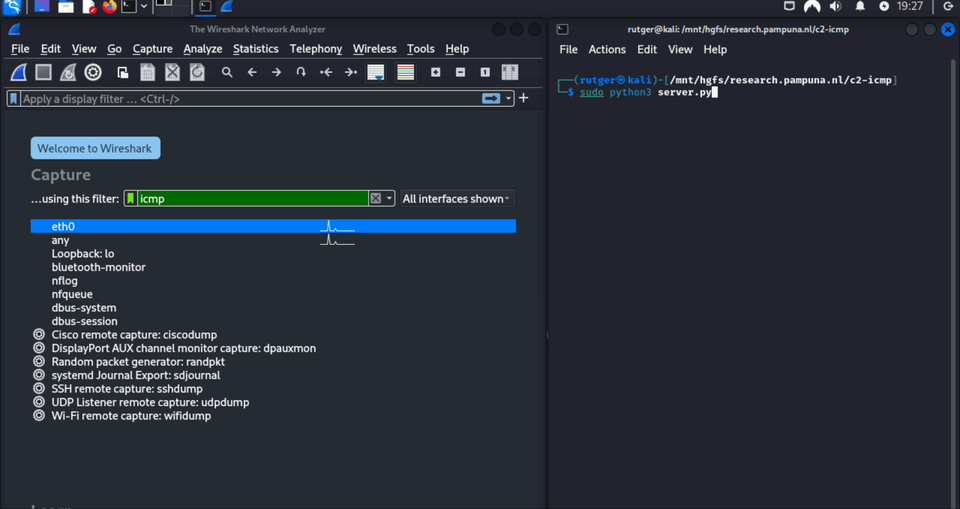

Before reviewing how this works, lets first take a look at the ICMP proof of concept shell in action:

Visualizing The Concept

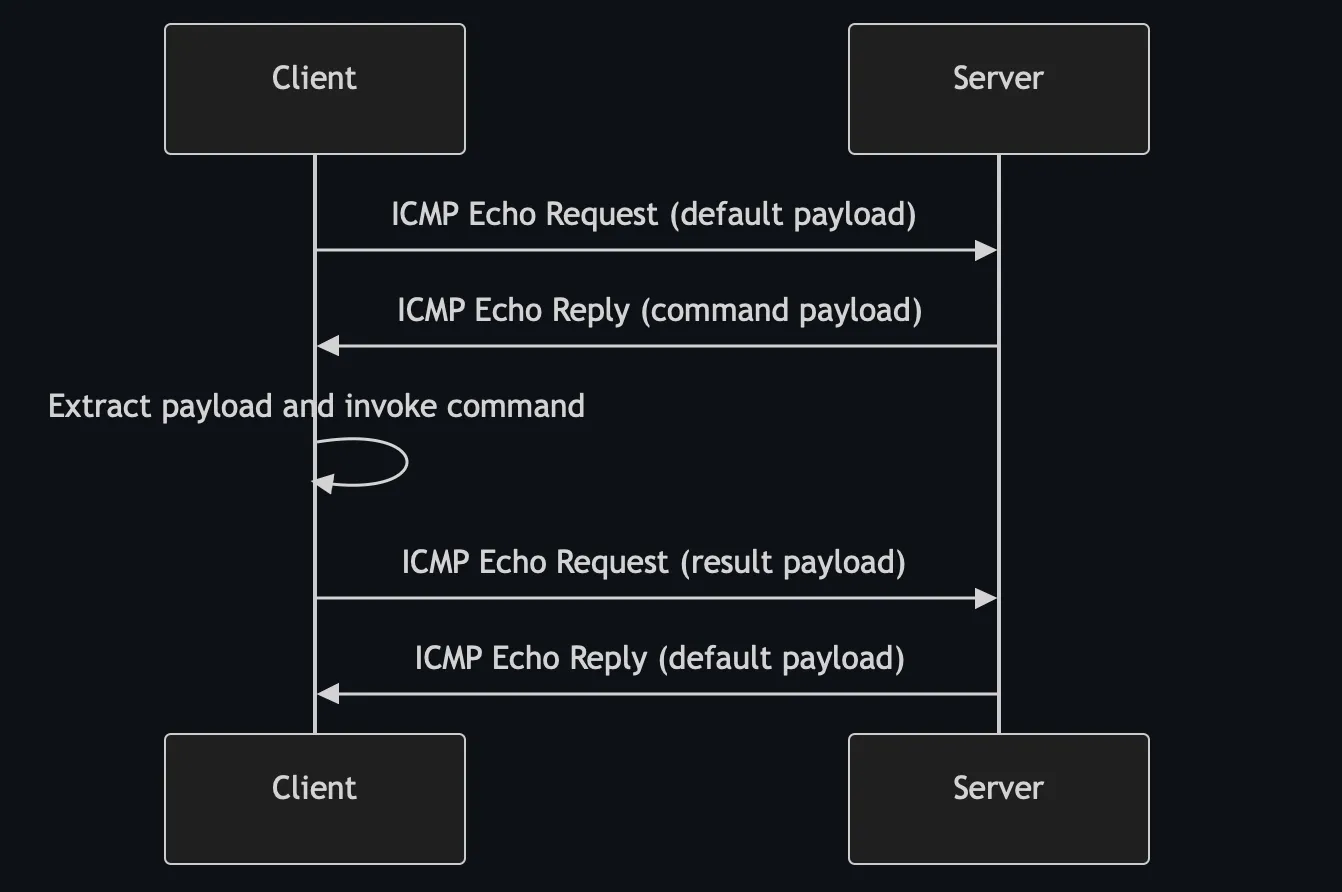

I would like to visualize a simplified overview of the way the client communicates with the server before I start explaining how the script works. Being a reverse shell, the client should initiate the connection.

The above flow illustrate why it’s important to watch for patterns in traffic. Even when ping packets look legitimate, monitoring behavior over longer periods of time can help detecting tactics like these!

Preparing The Host

First things first. Before I could start testing, I had to disable ICMP echo replies on my host. If this isn’t done, the operating system will respond earlier than the server. This must be prevented, because the ICMP reply is being used to return data. Use the following command to disable (or enable) it:

# Disable ICMP
sudo sysctl -w net.ipv4.icmp_echo_ignore_all=1

# Enable ICMP
sudo sysctl -w net.ipv4.icmp_echo_ignore_all=0

Additionally, the server had to be started with administrative privileges in order be able to sniff traffic.

The PowerShell Reverse Shell Using ICMP

The script itself isn’t gigantic, about 75 lines, with comments and without any obfuscation. Combined with the custom Python handler (server) however, it becomes pretty large. As mentioned before, I’m still working on my repository. If you’re interested in testing the shell, follow my Github for updates.

Pushing Data

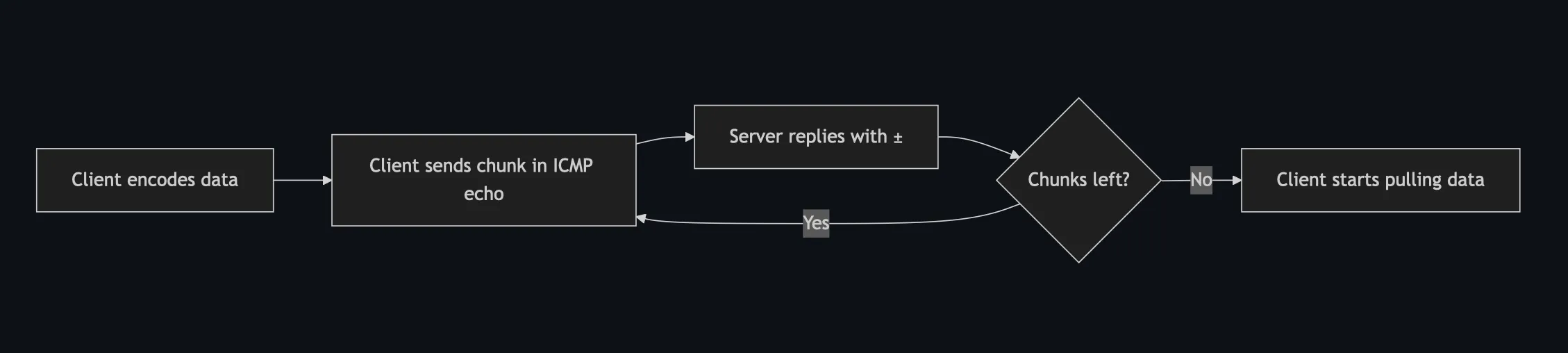

Lets start with the largest function, push_data. In short, it does the following:

• Base64 encode the data.
• Set up ICMP handler.
• Send the data in chunks of 56 bytes per packet.

The maximum size of an ICMP packet is much larger than what I’m using. However, in an attempt to blend in with regular traffic, we’re sticking to small packets which should match expected patterns when throttled.

Pulling Data

Next up, pulling the data. In terms of ICMP, this is a bit of a weird concept. In general, when a host replies to an ICMP echo request, the response payload will match the request. In this case, it does not. Between the client and server, each message is terminated by the character ±. So until we’ve received enough data, we send an ICMP request to the target.

The server then embeds a chunk of encoded data into the response payload, which the client adds to the cached response its building. After each iteration, the client tries to decode the response and verifies if it ends with the terminator. If it does, the loop is broken.

A full response consisting of only exactly the terminator acts as a heartbeat. The client sleeps and tries again later.

Invoking Commands

Up until this point, we’ve basically just implemented ping with embedded data. However, when a command is received, it is invoked. To prevent breaking the script, before each invocation the $ErrorActionPreference is changed to “Stop”. Invoking a command silently, while still returning errors to the server, would look something like this:

function invoke_command {
    param ([string] $command)
    try { $ErrorActionPreference = "Stop"; $result = Invoke-Expression $command | Out-String }
    catch { $result = [char]27 + "[31m" + $_.Exception.Message + [char]27 + "[0m"; }
    finally {
        $ErrorActionPreference = "Continue"
        # The server should always receive a response.
        if ($null -eq $result -or '' -eq $result) { $result = ' ' }
        $result = $result + '±'
    }
    return $result
}

Putting It Together

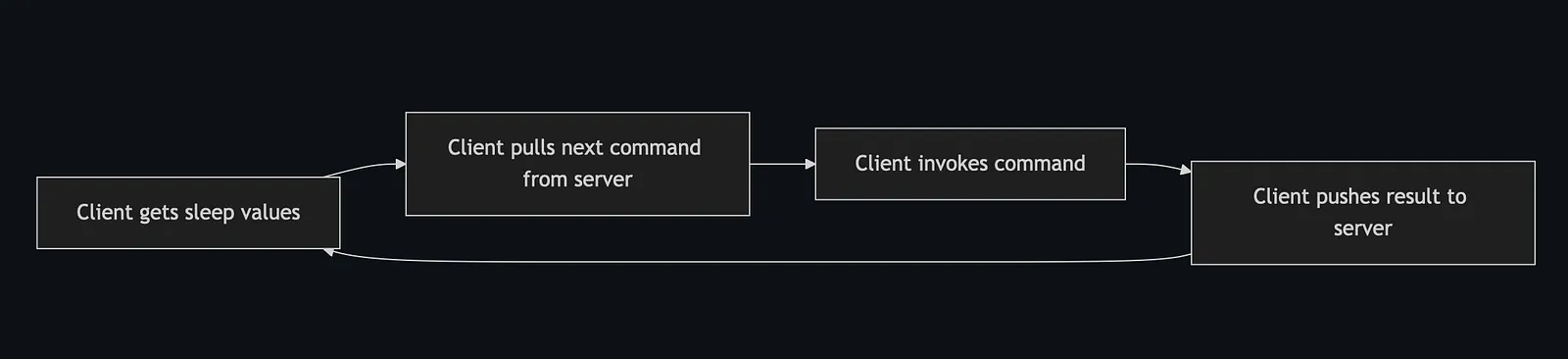

In the main loop of the shell, the following happens:

• Get random sleep values to randomize timing a bit.
• Pull the next command.
• Invoke the command.
• Push the result.
• Repeat.

The Receiving Python Server

As expected, simply running nc won’t do in this case. I needed to create a custom Python solution which is able to:

• Handle ICMP packets.
• Handle user input and command output (CLI).
• Manage connections.

The server uses the package scapy to handle raw packets. It uses coroutines to handle the above processes. In short, the server does the opposite of the client. Instead of embedding data into the ICMP echo request, it does so in the replies.

As mentioned before, I wanted to create a tool which can be used to test NDR/XDR solutions, so I still have some work to do! If you’re interested in this becoming a public repository, let me know by following me on Github or by leaving a comment on below platforms.

Thank you for taking the time to read my article. If you liked this article and want to receive updates, follow me on Github.
